Earthing Electrodes

GI earthing electrode

(strip in pipe)

Features
  • - CPRI Tested.
  • - Hot Dip Galvanization for Corrosion Protection.
  • - Longevity.
  • - Reliability.
  • - Maintenance Free.
  • - Easy & Fast Installation.
  • - Designed for fast fault current dissipation.
  • - BFC is used as Moisture booster for low earth resistance.
  • - We accept Customizations as required by our Clients.

Modal and sizes

Modal Length (Mtr.) Terminal size Inner strip Outer pipe
Diameter (MM)
40 FEGI 1,2 & 3 40x6 25x3 48
50 FEGI 1,2 & 3 50x6 25x3 58
80 FEGI 1,2 & 3 50x6 25x3 88

copper bonded earthing electrode

Features
  • - CPRI Tested.
  • - Up to 250 microns Copper Bonding on Electrode.
  • - Longevity.
  • - Reliability.
  • - Maintenance Free.
  • - Easy & Fast Installation.
  • - Designed for fast fault current dissipation.
  • - BFC is used as Moisture booster for low earth resistance.
  • - We accept Customizations as required by our Clients.

Modal and sizes

Modal Length (Mtr.) Terminal size Inner strip Outer pipe
Diameter (MM)
40 FECB 1,2 & 3 40x6 25x3 48
50 FECB 1,2 & 3 50x6 25x3 58
80 FECB 1,2 & 3 50x6 25x3 88

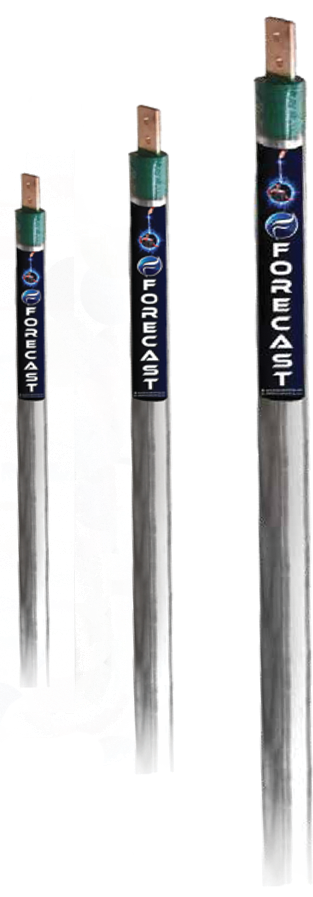

copper terminal earthing electrode

Features
  • - CPRI Tested.
  • - Pure Copper Terminal for better Conductivity.
  • - Longevity.
  • - Reliability.
  • - Maintenance Free.
  • - Easy & Fast Installation.
  • - Designed for fast fault current dissipation.
  • - BFC is used as Moisture booster for low earth resistance.
  • - No need to pour water.
  • - We accept Customizations as required by our Clients.

Modal and sizes

Modal Length (Mtr.) Terminal size Inner strip Outer pipe
Diameter (MM)
40 FECT 1,2 & 3 40x6 25x3 48
50 FECT 1,2 & 3 50x6 25x3 58
80 FECT 1,2 & 3 50x6 25x3 88

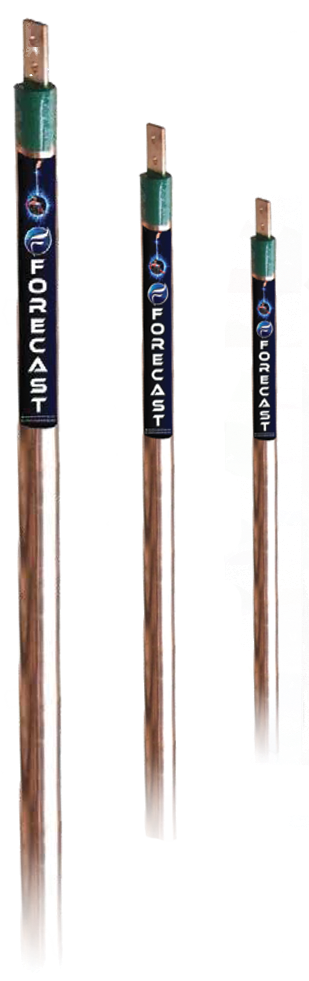

pure copper earthing electrode

Features
  • - CPRI Tested.
  • - 100% Pure Copper for long life.
  • - Suitable for all types of soil.
  • - Longevity.
  • - Reliability.
  • - Maintenance Free.
  • - Easy & Fast Installation.
  • - Designed for fast fault current dissipation.
  • - BFC is used as Moisture booster for low earth resistance.
  • - We accept Customizations as required by our Clients.

Modal and sizes

Modal Length (Mtr.) Terminal size Inner strip Outer pipe
Diameter (MM)
40 FEPC 1,2 & 3 40x6 25x3 40
50 FEPC 1,2 & 3 40x6 25x3 50
80 FEPC 1,2 & 3 540x6 25x3 80

Copper Bonded 4G Road

Features
  • - CPRI Tested.
  • - Up to 250 microns Copper Bonding on Electrode.
  • - Uniformed Coating for Greater Performance.
  • - Suitable for all types of soil.
  • - Longevity.
  • - Reliability.
  • - Maintenance Free.
  • - Easy & Fast Installation.
  • - Designed for fast fault current dissipation.
  • - No need to pour water.
  • - BFC is used as Moisture booster for low earth resistance.
  • - We accept Customizations as required by our Clients.

Modal and sizes

Modal Length (Mtr.) Terminal size Diameter (MM)
14.2 FECBR 1,2 & 3 50x6 14.2
17.2 FECBR 1,2 & 3 50x6 17.2
25.2 FECBR 1,2 & 3 50x6 25.2

centrifugally cast iron earthing electrode

Features
  • - Corrosion Protection.
  • - Longevity.
  • - Reliability.
  • - Easy & Fast Installation.
  • - BFC is used as Moisture booster for low earth resistance.

Description

LT Earthing RT Earthing
NB Thickness Length Available NB OD Length Available
50 3.5 1000 1500 1800 - - - 100 114 7.0 2500 2700 3000
75 3.5 1000 1500 1800 2500 2700 2900 100 120 10.0 2500 2700 3000
100 4.0 - 1500 1800 2500 2700 2900 100 126 13.0 2500 2700 3000
150 5.0 - 1500 1800 2500 2700 2900 150 170 10.0 2500 2700 3000
LT Earthing 150 176 13.0 2500 2700 3000
* All dimensions are in millimeters  * Tolerance aplicable as per relevance standard.
